Brief Introduction

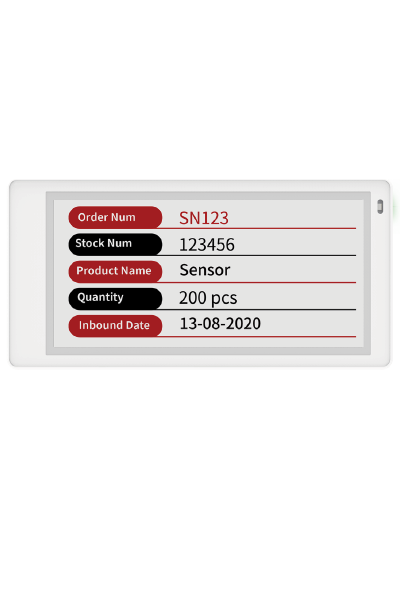

DS035 is a 3.5-inch ultra-thin ESL independently developed by eslTAGS. By utilizing the latest Bluetooth Low Energy 5.0 Technology, it features a 9.8mm ultra-thin design, secure, fast data transfer and agile screen refresh. DS035 reveals a fully-graphic display and paperlike appearance by adopting the latest E-ink display technology. With the 2.5D transparent shell, it delivers a nearly 180° viewing angle for excellent readability.
Specifications
Share Material:PC1100
Color:White
Dimenssions:99.5*49.5*9.8mm
Display Technology:EPD
Screen Size:3.5-inch
Display Area:79.4*37.9mm
Resolution:384*184 px
Pixel Density:122 dpi
Weight: 45g
Battery Lifetime:Â 6 years(5 updates/day)
Fixing Ways: Shelf Rail/Paste Etc.
Color:Black Red White
Technical Parameters
Communication Protocol:Bluetooth Low Energy 5.0
Battery:CP502440
Transmitting Distance:70-80 Meters
Working Humidity:50±20%RH
Operating Temperature:0°C-40°C
Storage Temperature:-20°C-60°C
Protection Level: IPX5
Highlights
Updating in seconds
6-year battery lifetime (5 updates/day)
REST API
LED location indicator
Managed by Cloud/APP
Custom templates
2.5D transparent shell
9.8mm ultra-thin design
